    Find your generator set
    Version
    Model: HYW-35 T6 Soundproof B10

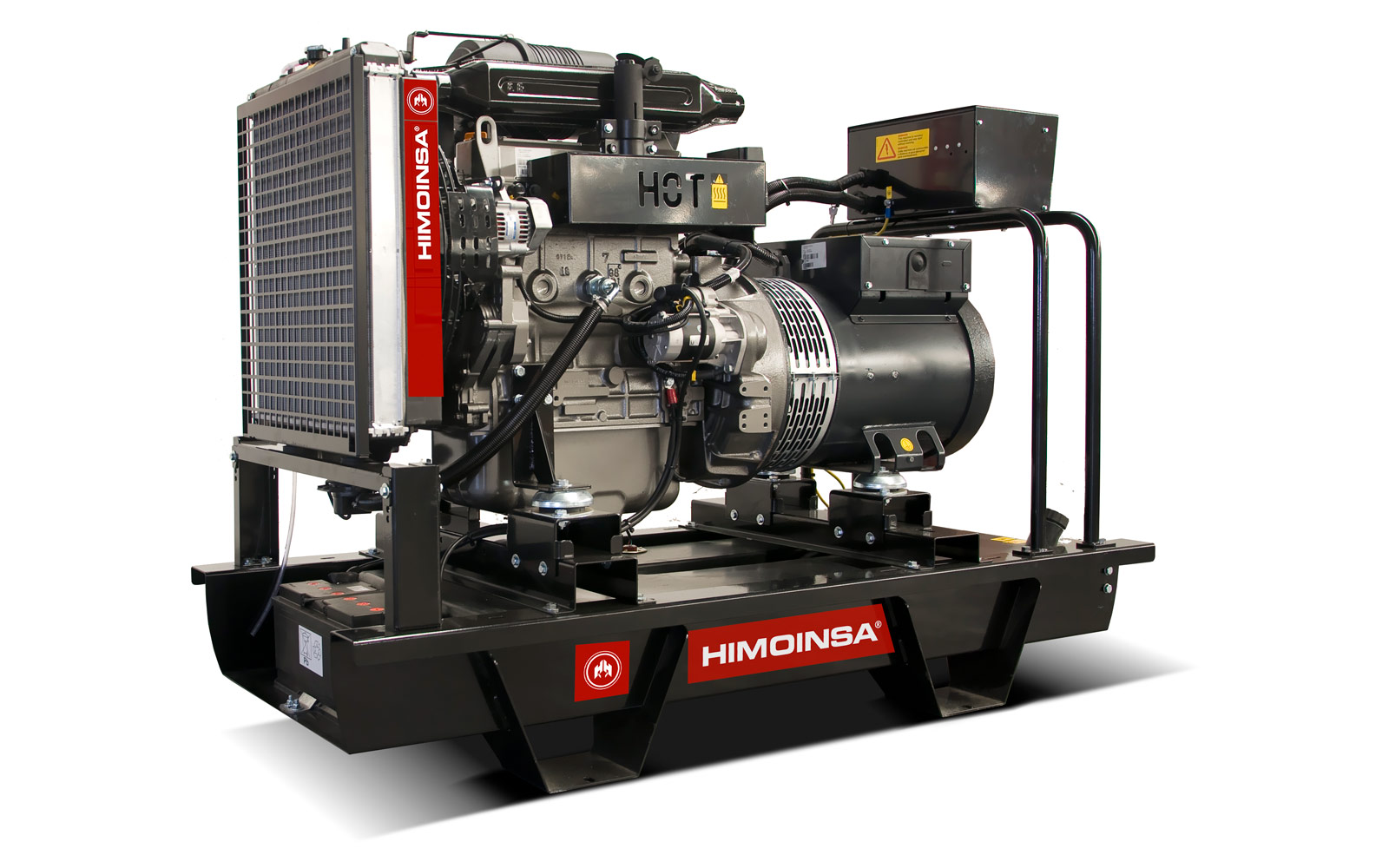

    Model: HYW-35 T6 Open Skid K3
    Model: HYW-35 T6 Mobile B10
    Model: HYW-35 T6 Mobile B10 (alta velocidad)

    Model

    HYW-35 T6

    HYW-35 T6 | Three phase | Diesel | Soundproof

    Model

    Powered by YANMAR

    Alternator MECC ALTE

    Emissions TIER II

    PRP
    ESP
    COP
    Power kVA
    40
    45
    Power kW
    32
    36
    Voltage Frequency Phase Alternator Type of connection Generator set data sheet
    480/277 V 60 Hz Three phase ECP32.1S4C Star-series
    Engine Alternator Version Installation Dimensions
    • Engine Specifications 1.800 r.p.m.
    • Rated Engine Output: 36,4kW prp ; 40,8kW standby
    • Manufacturer: YANMAR
    • Model: 4TNV98GGEH
    • Engine Type: 4-stroke diesel
    • Injection Type: Direct
    • Aspiration Type: Natural
    • Number of cylinders and arrangement: 4-L
    • Bore and Stroke: 98 x 110 mm
    • Displacement: 3,319 L
    • Cooling System: Coolant
    • Lube Oil Specifications: SAE 3 class 10W30 / API grade CD,CF
    • Compression Ratio: 18.5:1
    • Fuel Consumption ESP: 10,58 l/h
    • Fuel Consumption 100% PRP: 9,23 l/h
    • Fuel Consumption 75 % PRP: 6,83 l/h
    • Fuel Consumption 50 % PRP: 4,89 l/h
    • Lube oil consumption with full load: 0,27
    • Total oil capacity: 10,5 L
    • Total coolant capacity: 9 L
    • Governor Type Mechanical
    • Air Filter Type Dry
    • Inner diameter exhaust pipe: 45 mm
    • Diesel engine
    • 4-stroke cycle
    • Water-cooled
    • 12V electrical system
    • Water separator filter (visible level)
    • Dry air filter
    • Radiator with pusher fan
    • Mechanical governor
    • Hot parts protection
    • Moving parts protection
    • Generator: MECC ALTE
    • Model: ECP32.1S4C
    • Poles: 4
    • Connection type (standard): Star-series
    • Mounting type: S-3 11"1/2
    • Insulation: H class
    • Enclosure (according IEC-34-5): IP23
    • Exciter system: Self-excited, brushless
    • Voltage regulator: A.V.R. (Electronic)
    • Bracket type: Single bearing
    • Coupling system: Flexible disc
    • Coating type: Standard (Vacuum impregnation)
    • - SOUNDPROOFED VERSION.
    • Steel chassis
    • Anti-vibration shock absorbers
    • Chassis with integrated fuel tank
    • Fuel level gauge
    • External emergency stop switch
    • Bodywork made from high quality steel plate
    • High mechanical strength
    • Low noise emissions level
    • Soundproofing provided by high-density volcanic rock wool
    • Epoxy polyester powder coating
    • Full access for maintenance (water, oil and filters, no need to remove the canopy)
    • Reinforced lifting hooks for crane hoisting
    • Watertight chassis (acts as a double barrier against liquid retention)
    • Fuel tank drain plug
    • Chassis drain plug
    • Chassis ready for future mobile kit installation
    • Steel residential silencer -35db(A) attenuation.
    • Oil sump extraction kit
    • Versatility to assemble a high capacity chassis with a metallic fuel tank
    • IP Protection according to ISO 8528-13:2016
    • Fuel transfer pump (Optional)
    • - ELECTRICAL SYSTEM.
    • Electric control and power panel with measurements devices and control unit (according to necessity and configuration)
    • Adjustable earth leakage protection (time & sensitivity) standard in M5 and AS5, with thermal magnetic protection
    • Battery charger (standard on gensets with automatic control panels)
    • Heating resistor (standard on sets with automatic control panels)
    • Battery charger alternator with ground connection
    • Starter battery/ies installed (cables and bracket included)
    • Ground connection electrical installation with connection ready for ground spike (not supplied)
    • Battery Switch (Optional)
    • - EXHAUST SYSTEM.
    • Maximum exhaust temperature: 575 ºC
    • Exhaust Gas Flow: 10,51 m3/min
    • Maximum allowed back pressure: 1300 mm H2o
    • Exhaust Flange Size (external diameter): 65 mm
    • - NECESSARY AMOUNT OF AIR.
    • Intake air flow: 161,3 m3/h
    • Cooling Air Flow: 1,176 m3/s
    • Alternator fan air flow: 0,308 m3/s
    • - STARTING SYSTEM.
    • Starting power: 2,3 kW
    • Starting power: 3,13 CV
    • Recommended battery: 92 Ah
    • Auxiliary Voltage: 12 Vdc
    • - FUEL SYSTEM
    • Fuel Oil Specifications: Diesel
    • Fuel Tank: 100 L
    • Other fuel tank capacities: 190, 330 L
    • - DIMENSIONS.
    • Length: 2.100 mm
    • Height: 1.350 mm
    • Width: 975 mm
    • Maximum shipping volume: 2,76 m3
    • Weight with liquids in radiator and sump: 909 kg
    • Fuel tank capacity: 100 L
    • Autonomy: 15 Hours
    • Sound pressure level: 68 ± 2,4 dB(A)@7m

    Dimensions

    Dimensions
    Length (A)21082.7
    Width (B)9838.4
    Height (C)13553.1

    Weight

    Weight

    Weight with fluids in radiator and crankcase

    909

    2004

    Fuel capacity

    100

    26

    Dimensions

    Dimensions
    Length (A)21082.7
    Width (B)9838.4
    Height (C)14155.5

    Weight

    Weight

    Weight with fluids in radiator and crankcase

    996

    2196

    Fuel capacity

    190

    50

    Dimensions

    Dimensions
    Length (A)21082.7
    Width (B)9838.4
    Height (C)15761.6

    Weight

    Weight

    Weight with fluids in radiator and crankcase

    1047

    2309

    Fuel capacity

    330

    87
