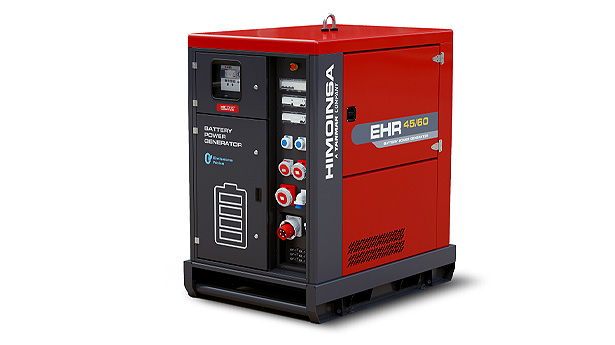

    What is EHR | Battery Power Generator?

    Is an energy storage and distribution system, which can operate independently, guaranteeing zero noise and emissions, and also can be integrated into power generation systems using diesel or gas generators and to connect to the grid or photovoltaic modules. The main goal of the EHR is to guarantee a higher energy efficiency and optimizing emissions and noise.

    The battery power generator is reliable and robust. Its mobile rental canopy withstands extreme environmental conditions. The EHR guarantees a high performance in a wide range of temperatures from -15ºC to 45ºC. Its electrical and mechanical protections ensure user safety at all times. The EHR is ideal for urban, noise-sensitive environments and for buildings and events in metropolitan areas, telecommunications, rental units for low-load problems and renewable power storage.

    EHR is available in single-phase 10kVA and three-phase 15, 30 and 45kVA nominal power solutions, with two different storage capacity options per model (ratios of 1:1 and 1:2). This optimal configuration makes it possible to complete the battery charging process in less than 1.5 hours (ratio of 1:1).

    1. Ease of Use | HICORE Smart Management System

    HICORE is the HIMOINSA-designed management system that lets operators select the most favourable power source for a specific load condition at any given time. It can be integrated with diesel and gas generator sets or connected to public electricity grids and renewable energy sources.

    2. Efficiency and Optimal Performance | EHR & Generator

    The EHR can operate as a main power source, reducing emissions and noise to zero, or it can be combined with a diesel or gas generator set to enable intelligent load management. Fuel consumption and CO2 emissions are reduced drastically in these combined working scenarios. But that's not all...

    What are the advantages of hybridisation (EHR + Generator set)?


    3.  Modes of Use | How does EHR works?

    The pre-configured working mode selector allows the user to configure the Battery Power Generator for the different applications or modes of use: Plug & Play, Low Load, Peak Shaving, UPS, Load Sharing. And always with the goal of increasing efficiency, reducing emissions, gaining in sustainability and flexibility, and optimising energy resources.

    4. Case studies

    Do you want to know how EHR performs in a real case?

    Discover here the performance data for the 'Peak Saving' and 'Low Load' cases.

    5.  Features and Benefits of using EHR


    100% clean solution. Reduces your carbon footprint.


    (UX-UI) User-friendly interface designed by HIMOINSA to simplify your day-to-day work. HICORE, smart management system.


    Ready to connect Plug&Play PV panels to the system. Including up to 8kW MPPT, we can integrate renewable energies into any working mode, increasing efficiency.


    Smartphone APP (Remote configuration, maintenance & diagnostics) / WEB Portal / 3G/4G Remote Communication, Dual SIM Modem/Router.


    The mobile rental canopy withstands extreme environmental conditions and temperatures from -15ºC to 45ºC. The canopy has best-in-class primer and powder coating. Galvanised frame (optional).


    The design includes a lifting eye, skid frame with forklift pockets, anti-theft features and first contact point to avoid scratches on the canopy. Its compact design makes it possible to transport up to 13 units by truck and 6 and 14 units in twenty-foot and forty-foot containers respectively.


    Wide doors in all sides, so easy access to change air filters.


    Reduction of OPEX & TCO (Total Cost of Ownership).

    Find out more about EHR | Battery Power Generator

    Watch the video and download the EHR Guide.

    Everything you need to know is here!
